Auxbeam

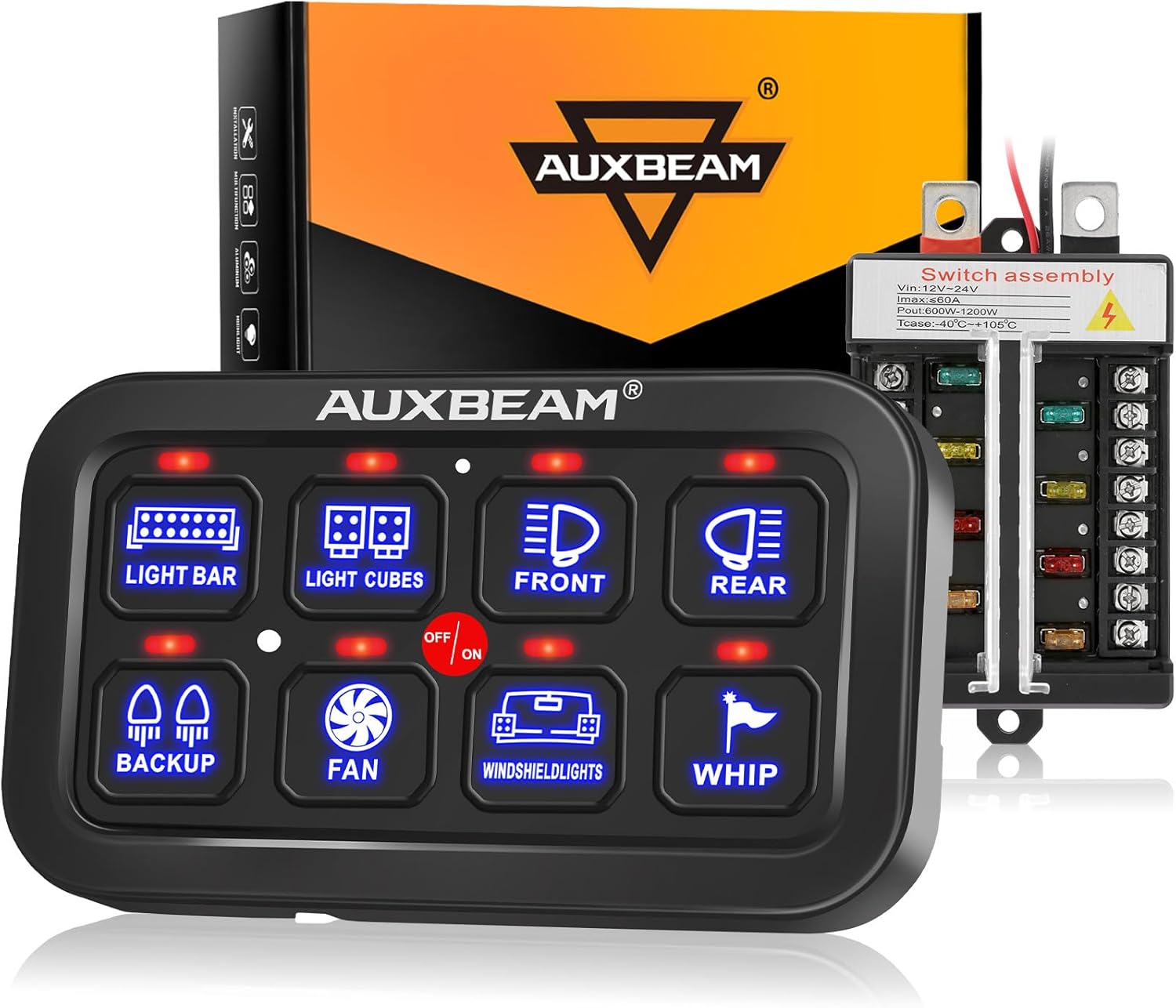

Auxbeam 8 Gang Switch Panel BB80 Universal Circuit Control Relay System Automatic Dimmable LED Switch Control Panel Switch Pod Touch Switch Box for Car Truck Offroad ATV SUV - Blue, 2 Years Warranty

Auxbeam 8 Gang Switch Panel BB80 Universal Circuit Control Relay System Automatic Dimmable LED Switch Control Panel Switch Pod Touch Switch Box for Car Truck Offroad ATV SUV - Blue, 2 Years Warranty

Regular price $218.99 USD
Regular price $218.99 USD Sale price
Shipping calculated at checkout.

Overview

  • Operation Mode : Manual
  • Current Rating : 60 Amps
  • Operating Voltage : 12 Volts
  • Contact Type : Normally Closed
  • Connector Type : Plug In
  • Brand : Auxbeam
  • Terminal : Screw
  • Item dimensions L x W x H : 11.8 x 7.8 x 3 inches
  • Circuit Type : Closed Circuit
  • Actuator Type : Touch Switch
  • Switch Type Touch Switch : Material Aluminum
  • : Switch Type Touch Switch
  • : Material Aluminum
  • Mounting Type Panel Mount : Specification Met Ip65 Waterproof
  • : Mounting Type Panel Mount
  • : Specification Met Ip65 Waterproof

About this item

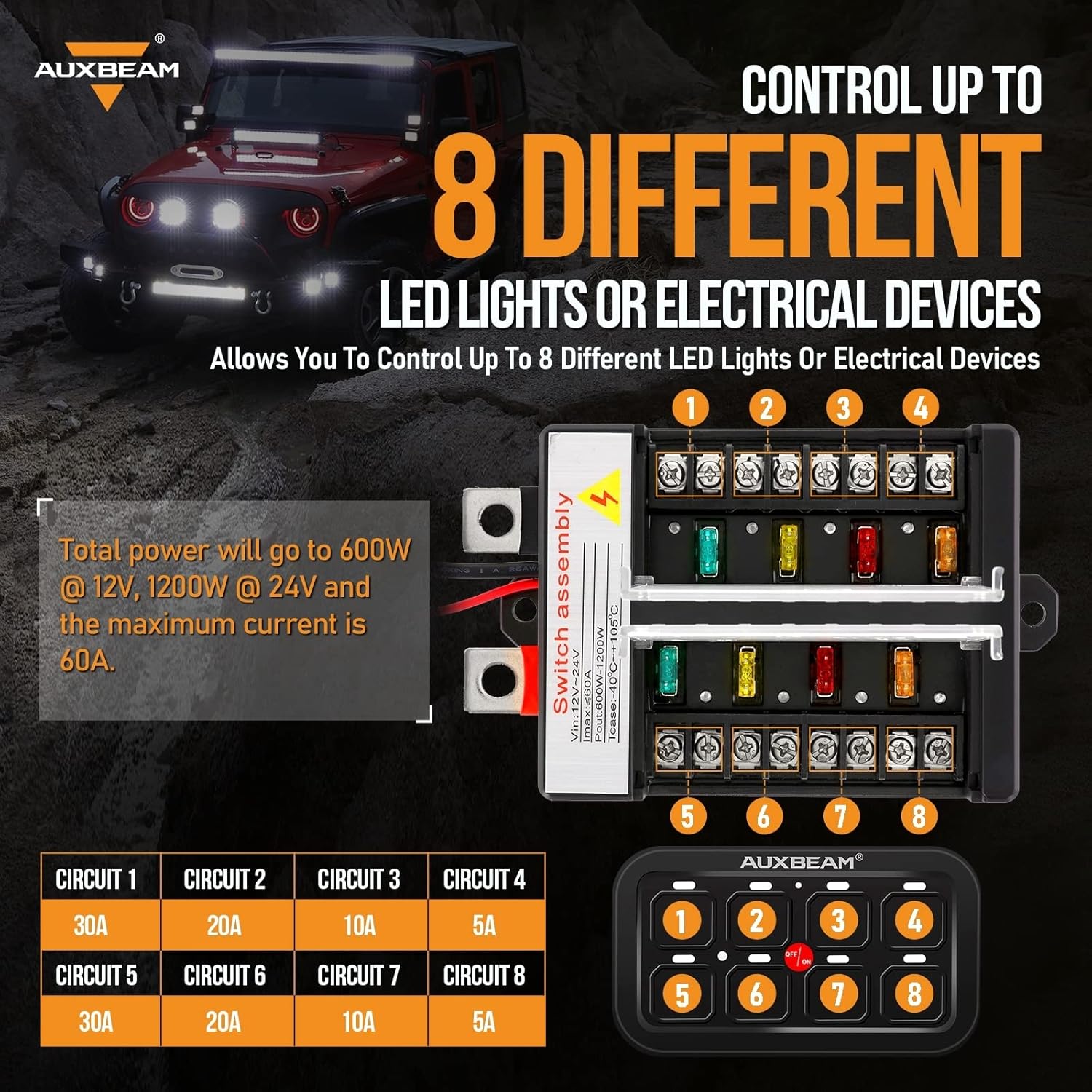

  • BB80 8 GANG SWITCH PANEL - Operating voltage: 12-24V DC; Max power rating: 1200W. Max current rating: 60A. The 8 gang switch panel offers a perfect solution for wiring and operating your electronic accessories with 8 gang switch panel automatic dimmable, so you can fully operate your vehicle's lighting, accessories, and electronic equipment.
  • AUTOMATIC DIMMABLE FUNCTION - Upgraded 8 gang switch panel have automatic dimmable feature, the backlight brightness of the switch panel will change according the brightness of environment. The brighter the environment is, the brighter the backlight will be. The automatic dimming design of Auxbeam 8 gang switch panel ensures your safety and improve off-road and night driving experience.
  • SAFETY PROTECTION - Our this 8 gang switch panel is built-in solid state relay, not the external relay, provide over-voltage protection, reverse polarity protection, over-current protection, thermal protection, come with additional fuses for replacement, providing all your connected LED lights & accessories work safely.

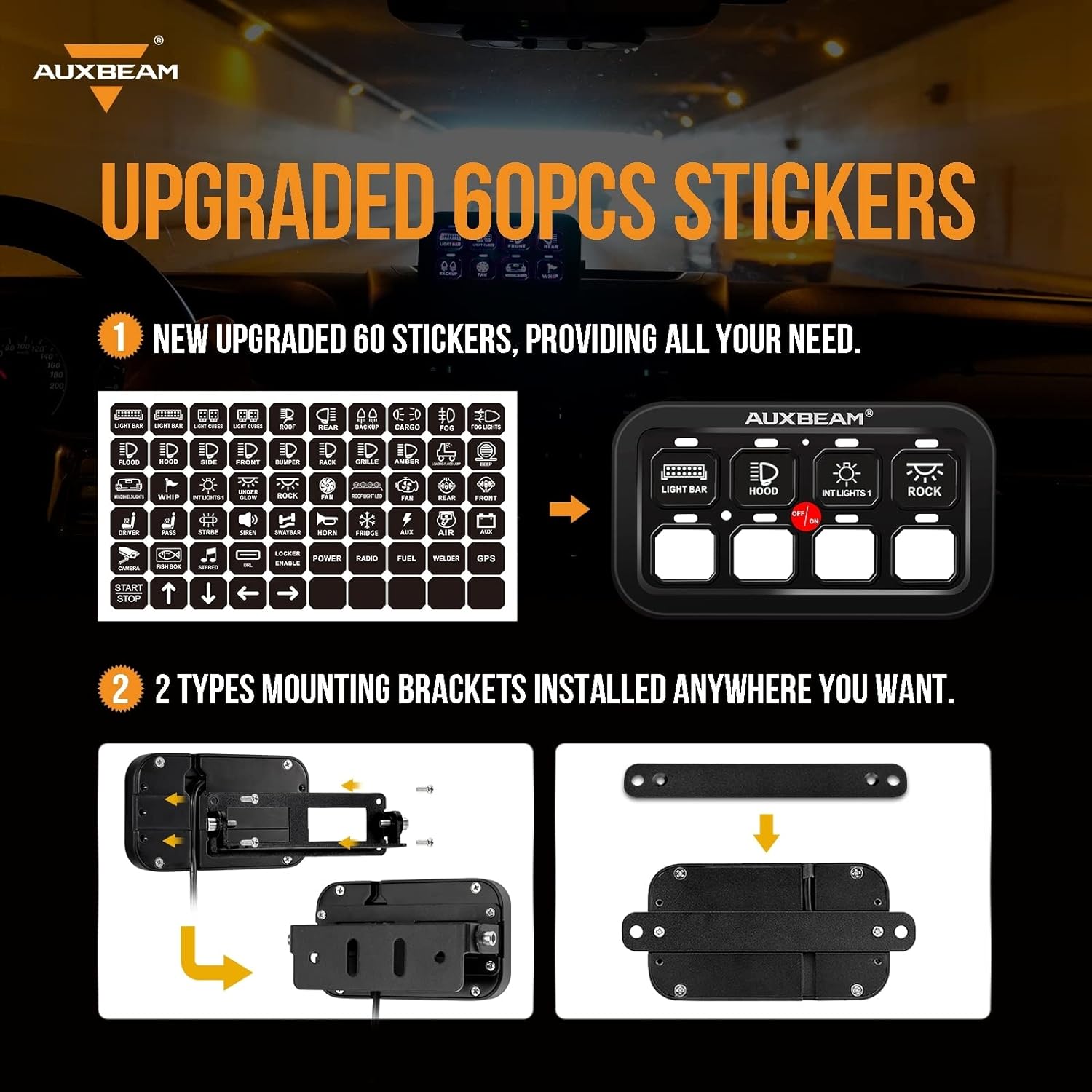

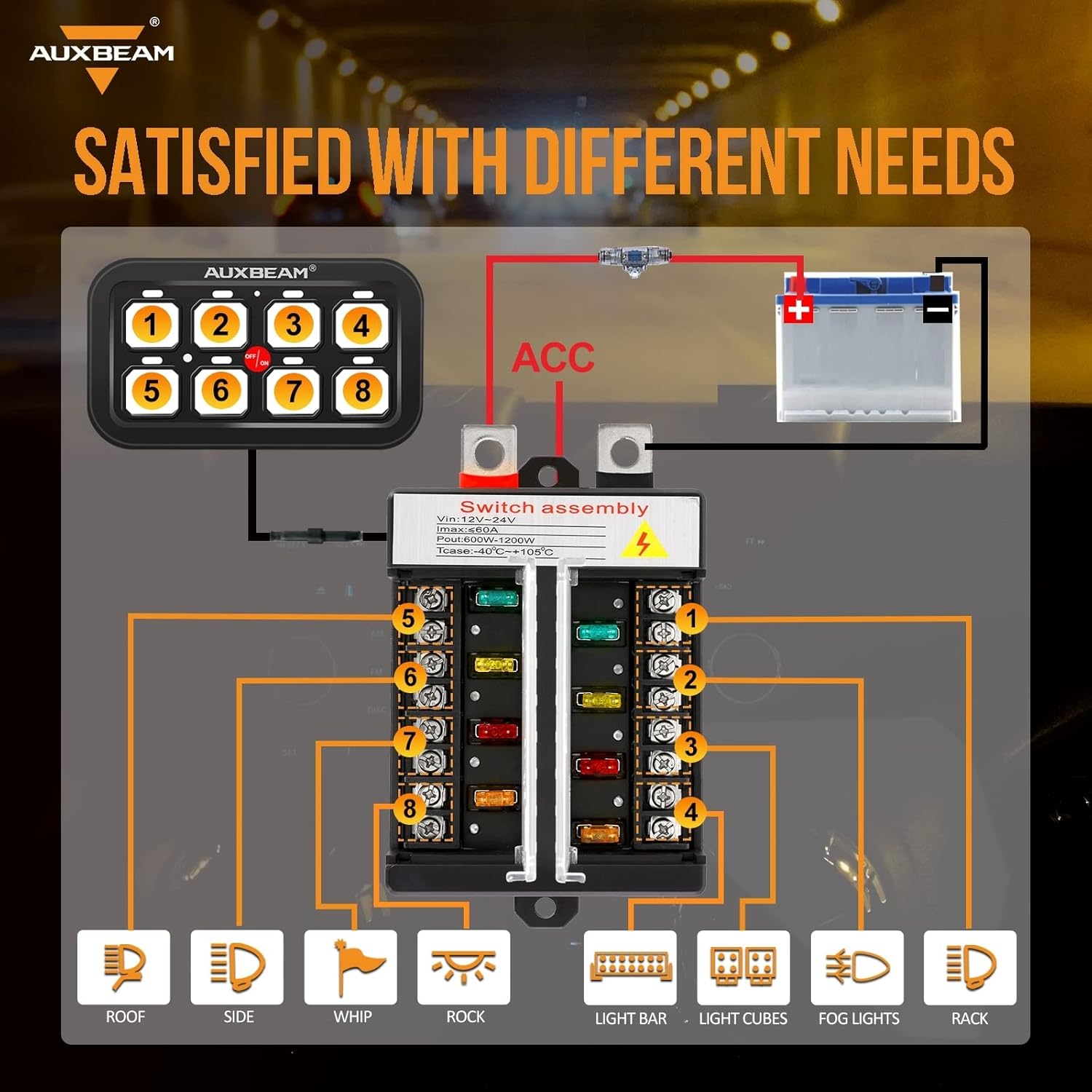

  • EASY INSTALLATION - No complicated wiring, no need to cut a big hole on your vehicle. Plug & play wiring harnesses ensuring you to connect the led lights or accessories easily. Two types of mounting bracket, you can install it anywhere you need. You can customize your personal switch panel with 60pcs self-adhesive labels. The best way to clean up all the wiring and add a single panel to control everything.

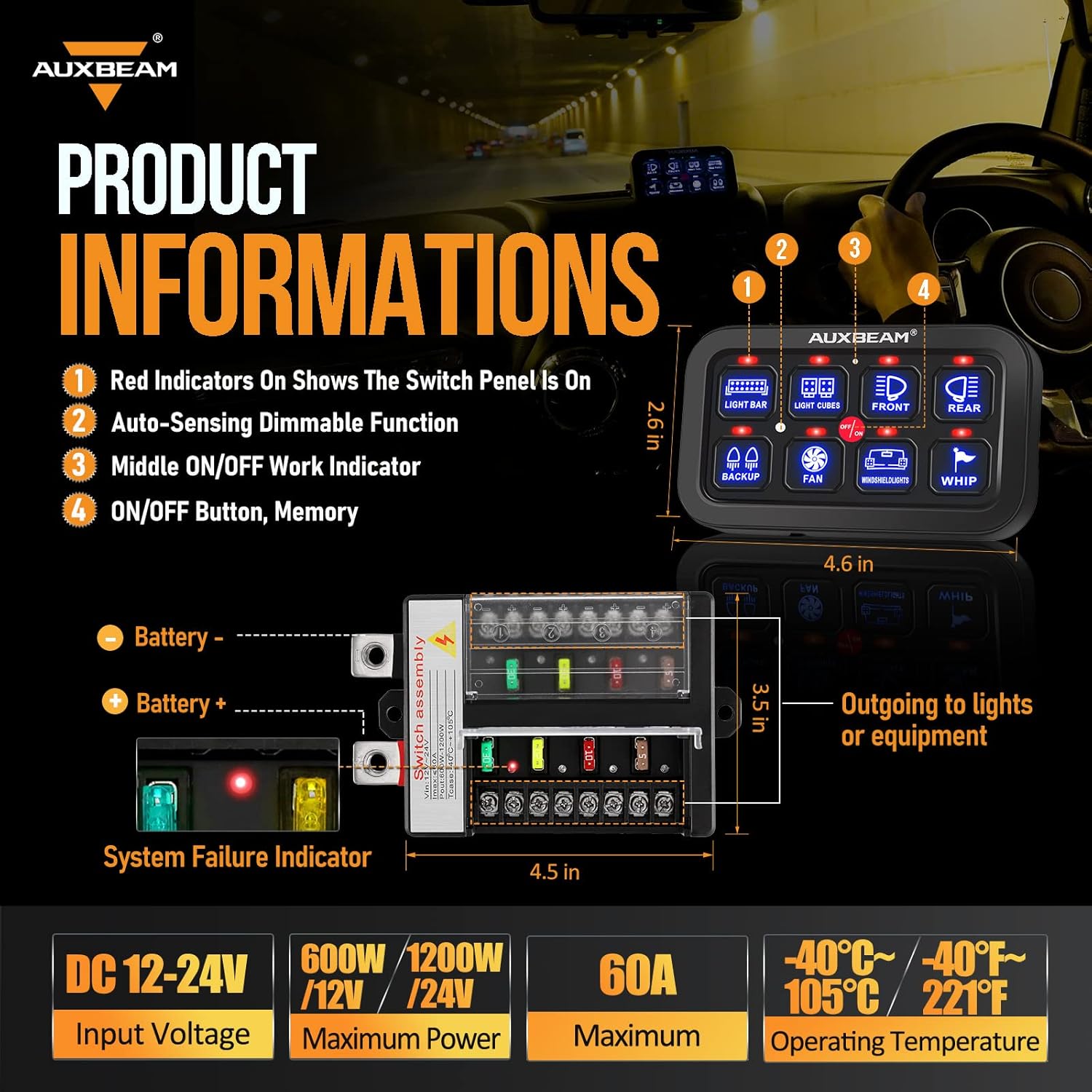

  • UNIVERSAL FITMENT & WARRANTY - This compact size switch panel control system is perfect for all situations. The switch panel only 4.7’’*2.8’’ can be installed on dashboard, center console, overhead sunglasses holder, etc, control box has only 3.6’’*4.5’’ footprint under the hood. More suitable for your needs, such as truck, boat, off road, powersport, marine, atv, suv, car, bus, heavy duty etc. 2 Years Manufacturer Warranty: free replacement for any quality problems by non-human reasons.
