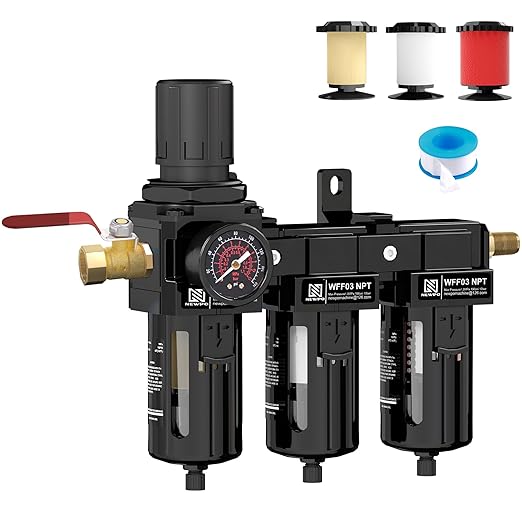

• ➤Thread Size：3/8" NPT ports. Max Supply Pressure: 145 psi; Operating Pressure: 0-125 psi.

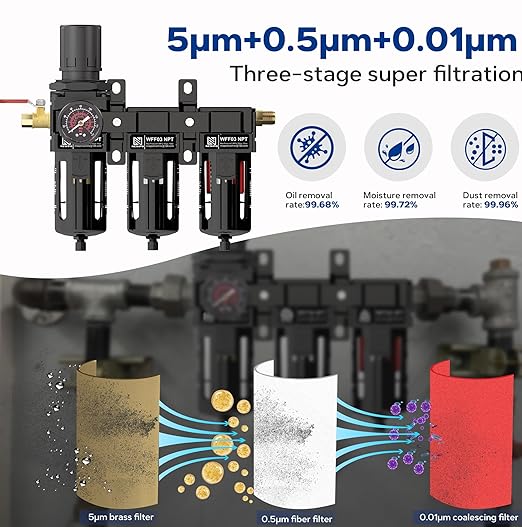

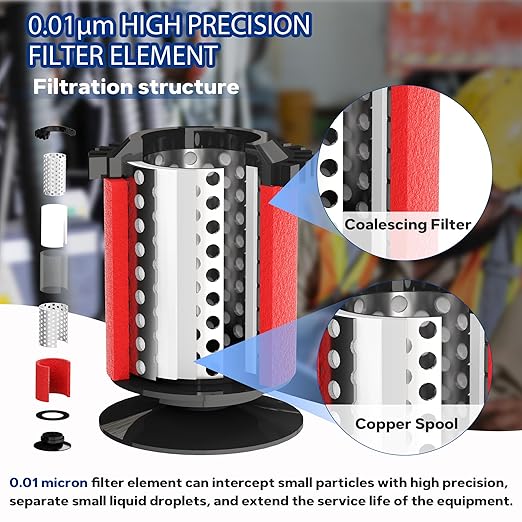

• ➤Excellent filtration performance, much longer life and reusability with 5 micron brass filter element,0.5 micron Fiber cartridge and 0.01 micron coalescing cartridge.

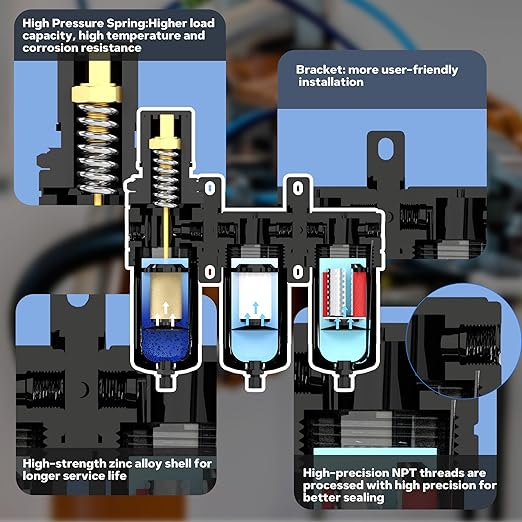

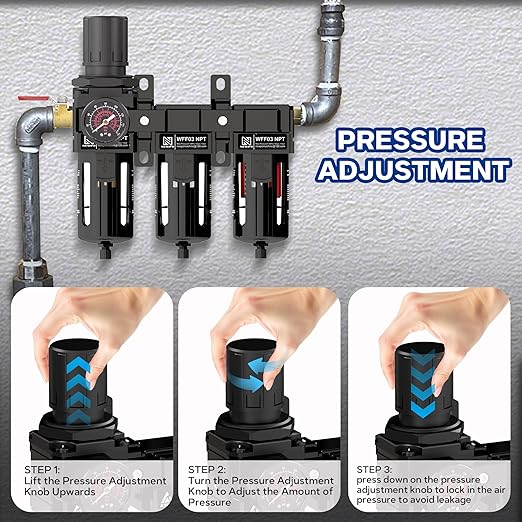

• ➤Pressure Regulation:The units have a regulator with an adjustable pressure control knob, enabling you to lower or maintain the air pressure according to your needs. The regulator ensures a stable outlet pressure, even when there are fluctuations in the inlet pressure and flow.

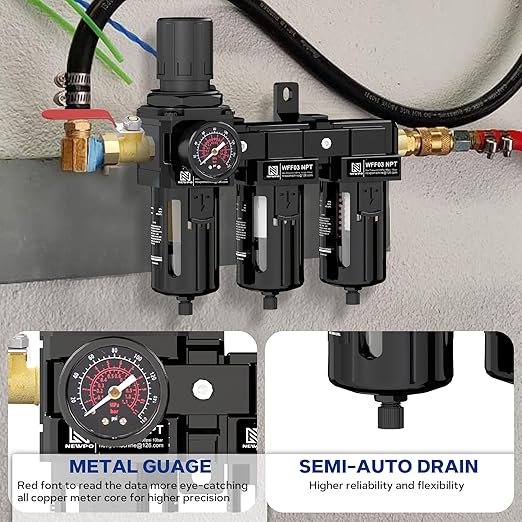

• ➤Semi-Auto Drain: Some of the units come with a semi-auto drain feature, which automatically drains accumulated liquids when there is no pressure. This helps to remove moisture and prevent damage to the system. It is important to keep the liquid level below the indicated maximum drain line.

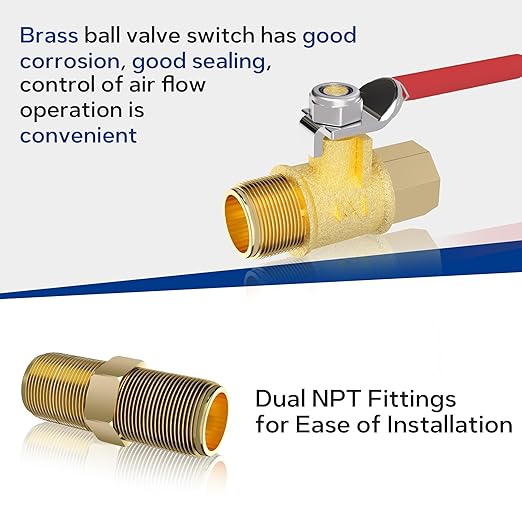

• ➤Gauge Bracket and Ball Valve: Each unit includes a pressure gauge with a visible dial scale, allowing accurate pressure measurement. The gauge provides measurement in both psi and bar units;Supplied with bracket for easy installation;Ball valves can be used to manually control the switch more convenient.
