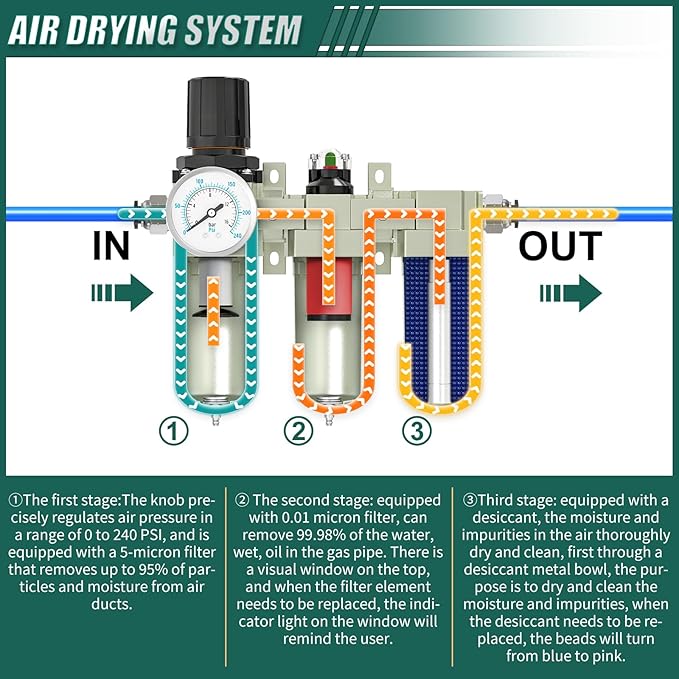

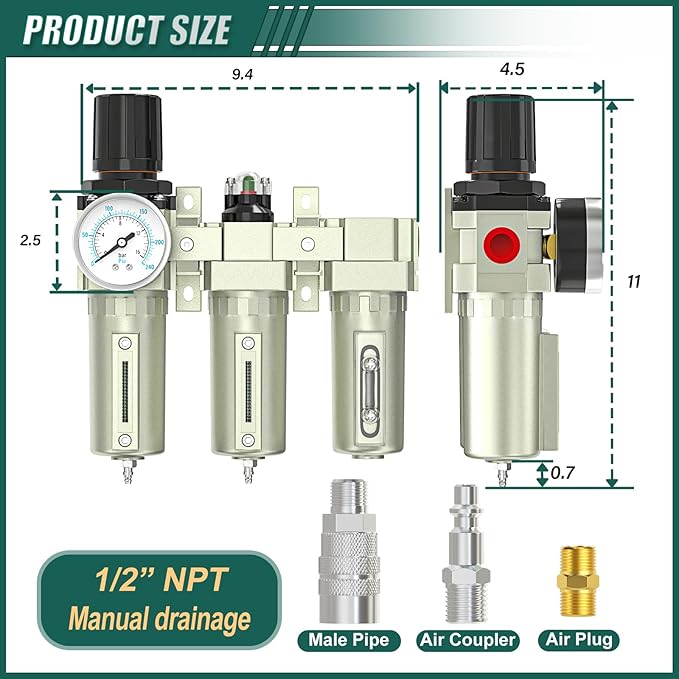

• The three-stage air filter system features two 1/2" NPT ports and one 1/4" NPT pressure gauge port, operating steadily within a range of 0-240 PSI and includes a manual drain function.

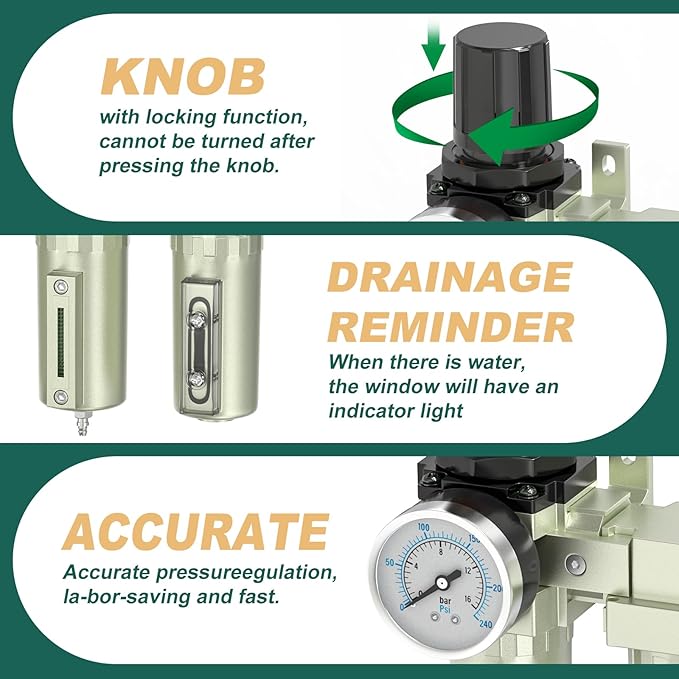

• STAGE 1: Filter and Regulator - The knob has a locking feature to prevent rotation, ensuring accurate and safe use, The filter includes a 5-micron cartridge that effectively filters 95% of particles and moisture.
• STAGE 2: The coalescing filter uses a 0.01-micron filter element, which can remove 99.9% of water, oil, and fine particles, These substances are effectively removed after being filtered in the first stage combination, When the red casing pops out, it indicates that the filter element needs to be replaced.
• STAGE 3: Desiccant Air Dryer - Contains a metal bowl filled with desiccant beads that absorb remaining moisture and impurities from the air, When the desiccant beads change color from blue to pink, it indicates that replacement is necessary.

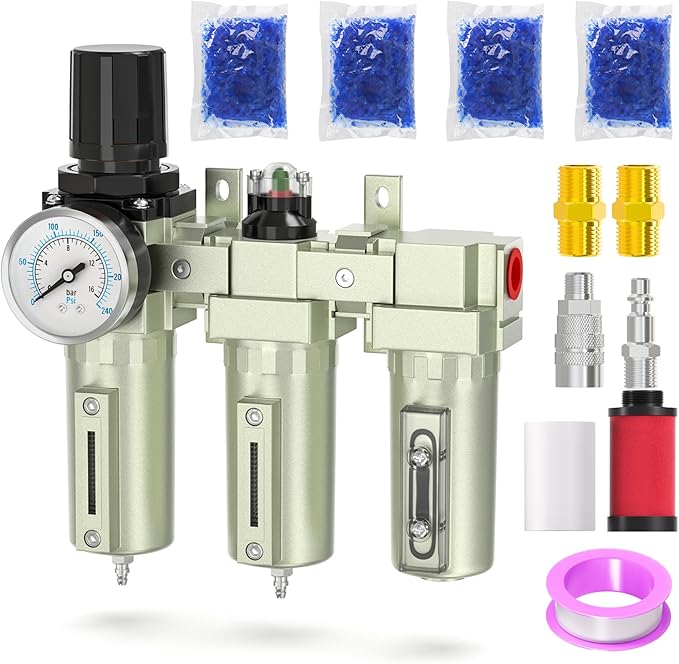

• ACCESSORIES: 1* three-stage 1/2 Industrial filter (manual), 4* desiccant,2* outer filament 1/2", 1* filter cartridge (5 microns), 1* filter cartridge (0.01 micron), 1* 1/2 Male and female connector combinations, 1* PTFE tape
